5GC001492: AEQN AirScale MAA 32T32R 96AE n78 80W (CPRI)

AEQN technical specifications.

AEQN Nokia AirScale MAA 32T32R 96 AE n78 80 W is a Nokia 5G radio unit with an integrated antenna for 5G operation at band n78.

AEQN Nokia AirScale has the following characteristics:

Functional description

Table:
AEQN functional specification

Property Value
Number of TXRX 32TX32RX
SW supported technology 5G
Duplex mode, supported standard TDD, 3GPP
Outdoor installation Yes
Frequency range 3.4 to 3.7 GHz, band n78
Beamforming Digital, 32TRX, 6x8 dual polarized phased array
Number of MIMO streams/beams 4
Max. iBW (instantaneous bandwidth)/oBW (occupied bandwidth) 100 MHz/60, 80, 100 MHz (1 carrier)
Carrier configurations 1 x 100 MHz
QAM modulation QPSK, 16 QAM, 64 QAM, 256 QAM
TX EVM/RX EVM TX/RX EVM < 2.5% with 1.5 dB back off and EVM < 4.5% without back-off

Band n78 Antenna Specification

Table:
AEQN antenna characteristics

Property Value
Total TX RF output power more or equal to 34 dBm
Antenna gain (boresight) 22.5 dBi (largest array antenna gain for minimum beamwidth)
Total average EIRP more or equal to 71.5 dBm
Horizontal steering angle 90° (3 dB), 120° (7 dB)
Horizontal beamwidth 11.8° (boresight)
Vertical steering angle 3 ± 5°
Vertical beamwidth 12.5° (boresight)
Side lobe suppression more or equal to 18 dB (with power tapering)
Isolation between polarities more or equal to 25 dB (boresight)
Main lobe accuracy and granularity less than 2º

Interfaces

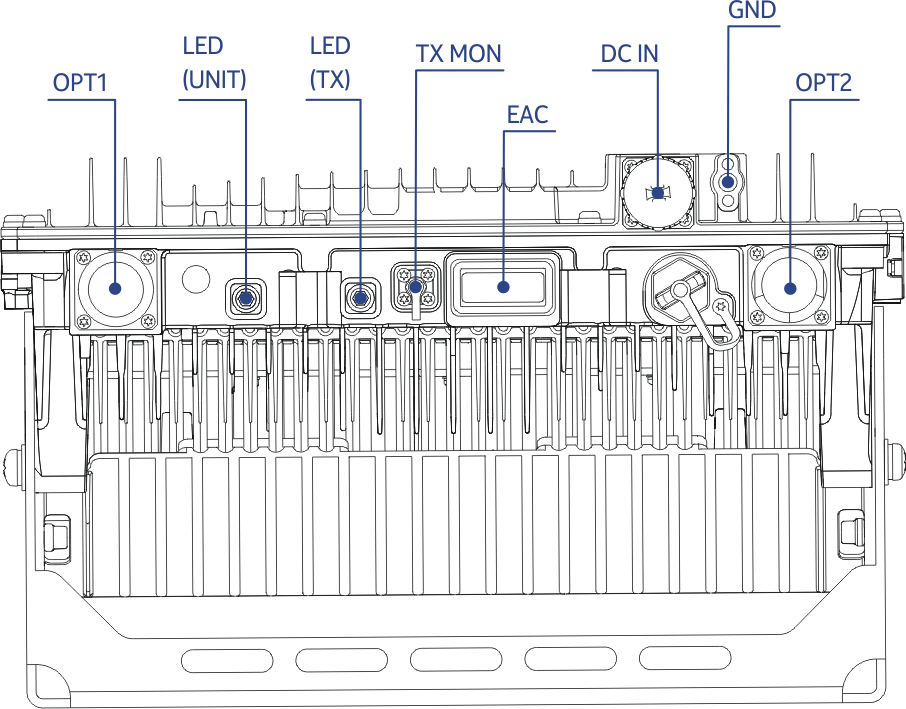

Figure:
AEQN interfaces

Table:
AEQN interfaces

Interface Label on the HW Number of interfaces Connector type Additional info
Power Connector DC IN 1 2 pole connector 55 A max
Optical interface OPT 2

SFP+

-
Grounding GND 1

2 x Screw, M5 (2 GND)

1 x Screw, M8 (1 GND)

-
External Alarm Connector EAC 1 MDR-26 -
TX Monitoring Connector TX MON 1 SMA -
Operational state visual indication (2 pcs) unit and TX status TX/UNIT 2 - Showing status of a unit and TX/fan

Electrical specifications

Table:
AEQN electrical specifications

Property Value
Nominal supply voltage -48 V DC
Nominal input voltage range -40.5 V~-57 V DC
Extended input voltage range -36 V~-60 V DC

Power consumption

Table:
AEQN power consumption

Property Value
Maximum power consumption with an optional fan unit 960 W at 100% load
DC Power Supply -48 V DC voltage (-40.5 V~-57 V DC)
AC Power Supply 100 to 240 VAC with an external AC/DC converter

Installation and mechanical specifications

Table:
AEQN installation and mechanical specifications

Property Value
Installation options
  • Pole installation
  • Wall installation
Mechanical tilt Possible in two axis, depending on the mounting kit
IP rating IP65
Cooling method Convection cooling

Dimensions and weight

Table:
AEQN dimensions and weight

Parameter Details Dimension orientation
Height 700 mm (27.56 in.)
Depth 185 mm (7.28 in)
Width 380 mm (14.96 in.)
Weight 22.5 kg (49.60 lb)
Volume 49 l

Environmental specifications

Table:
AEQN environmental specifications

Property Value

Maximum operational outdoor temperature (in the shade)

45°C (113°F)

Maximum operational outdoor temperature (in the sun)

45°C (113°F)

Maximum indoor temperature

45°C (113°F)

Minimum operational temperature

-40°C (-40°F)

Warnings, cautions or notes related to the product

WARNING!

Risk of RF exposure.

To prevent from RF exposure, place an RF absorber or blanket in front of the radome surface or keep 1.5 m (4.92 ft) distance from the radome surface in controlled environment and 3 m (9.84 ft) distance from the radome surface in uncontrolled environment (as labeled on the front panel).

NOTICE:
The radio unit without a fan should always be mounted in a vertical orientation with connectors on the bottom side to ensure convection cooling.
